IDEEI S700 Lifting Dedicated Inverter 0.4-315KW Crane VFD

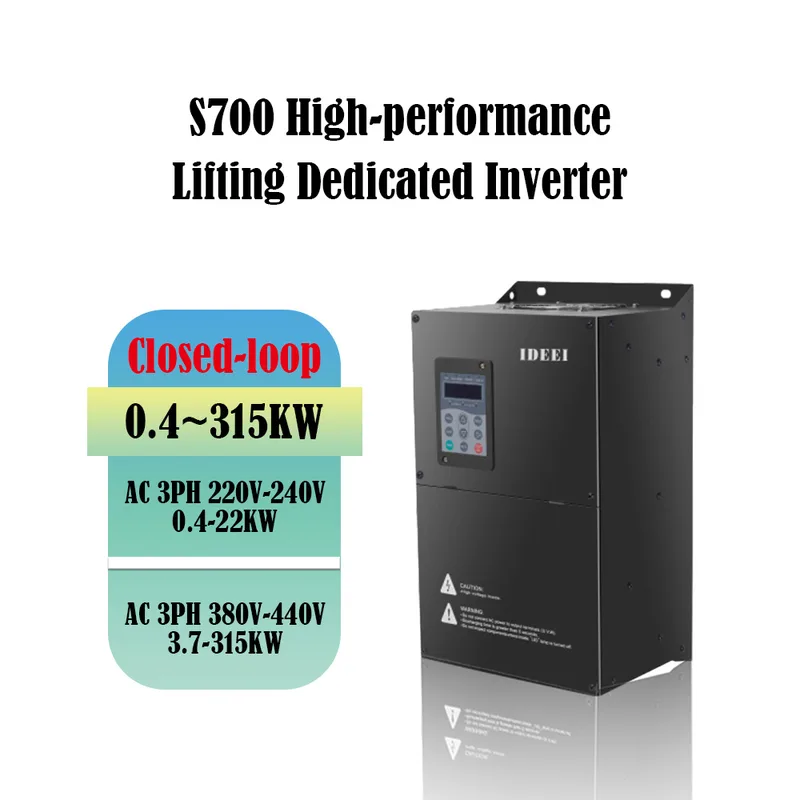

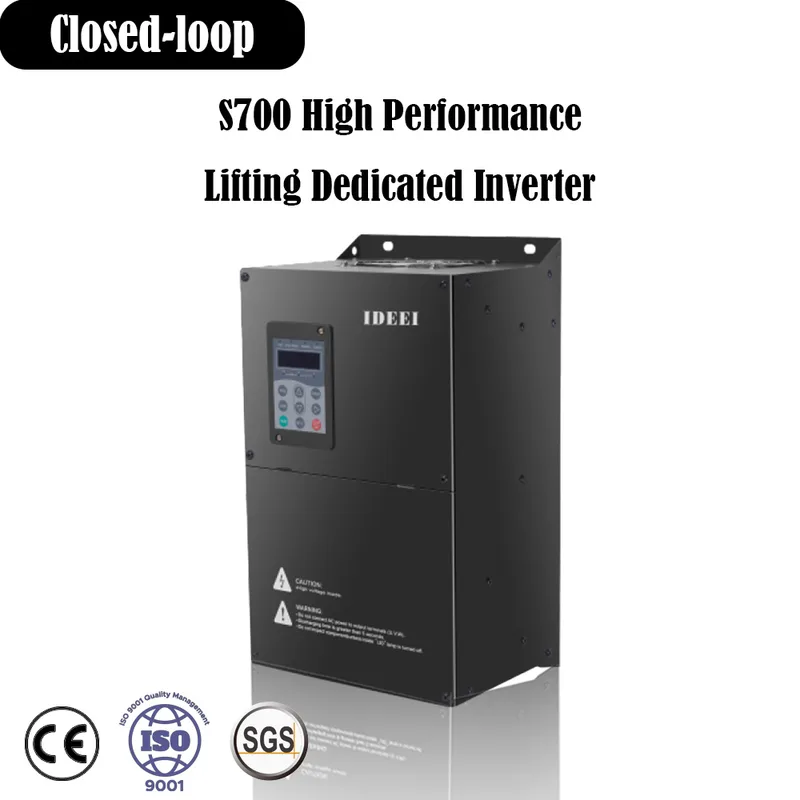

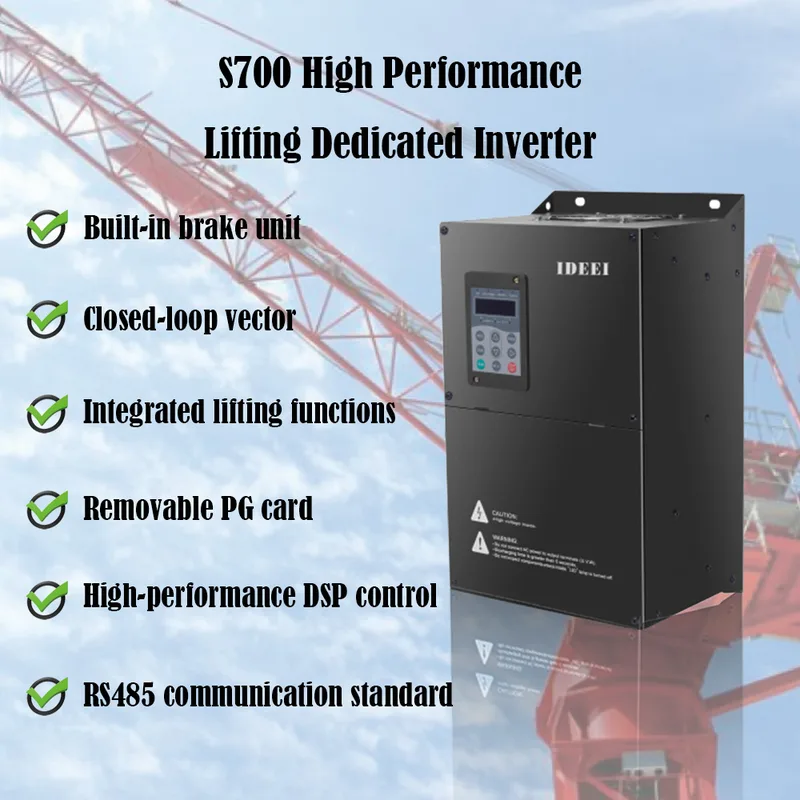

IDEEI S700 Lifting Dedicated Inverter 0.4-315KW Crane VFD view 1 IDEEI S700 Lifting Dedicated Inverter 0.4-315KW Crane VFD view 2 IDEEI S700 Lifting Dedicated Inverter 0.4-315KW Crane VFD view 3 IDEEI S700 Lifting Dedicated Inverter 0.4-315KW Crane VFD view 4
Products

IDEEI S700 Lifting Dedicated Inverter 0.4-315KW Crane VFD

A purpose-built AC drive engineered for crane, hoist, and material handling applications from 0.4kW to 315kW. Combines closed-loop vector control with integrated crane logic — brake time sequence, light-load high-speed, and precise positioning — to deliver safe, efficient motor control for ports, shipyards, and industrial lifting systems.

  • Closed-loop vector control: 200% startup torque at 0.0Hz
  • Built-in crane logic: brake sequence, anti-hook-glide, light-load boost
  • Built-in braking unit on models ≤37kW
  • Speed range 1:1000 with ±0.02% stability (CLVC)
  • RS485 Modbus-RTU standard; PROFIBUS-DP / CANopen optional
Available Power Ratings: 0.75kW 1.5kW 2.2kW 4kW 5.5kW 7.5kW 11kW 15kW 18.5kW 22kW 30kW 37kW 45kW 55kW 75kW 90kW 110kW 132kW 160kW 200kW 220kW 250kW 280kW 315kW 355kW 400kW
Send Inquiry WhatsApp Quote

Key Features & Benefits

⚡ Closed-Loop Vector Control

  • SFVC, CLVC, and V/F control modes in one unit
  • 200% startup torque at 0.0Hz (CLVC); 200% at 0.5Hz (SFVC)
  • Speed range 1:1000 (CLVC) with ±0.02% stability accuracy
  • High-performance DSP platform for precise torque control

🛡️ Crane-Specific Safety & Protection

  • Built-in brake time sequence control — prevents hook gliding
  • Overload protection restricts hoisting but allows lowering
  • Power dip ride-through and low-voltage controlled stop
  • Overcurrent / overvoltage stall control; phase loss protection
  • CE, ISO 9001, SGS certified

🏗️ Smart Lifting Automation

  • Light-load high-speed — auto-calculates max frequency for empty hooks
  • Accurate positioning without creeping via encoder feedback
  • Multi-motor parameter storage — switch between 3 motors via DI
  • RS485 Modbus-RTU standard; optional PROFIBUS-DP, CANopen, CANlink

💰 Cost & Operational Savings

  • Built-in braking unit on models ≤37kW (only external resistor required)
  • Three-level function codes for junior, senior and advanced users
  • Reduced mechanical brake wear through intelligent timing control
  • Shaft-cooling motor low-speed protection extends motor life

Typical Applications

Overhead cranes, gantry cranes, port container handling, shipyard hoists, construction material lifting and industrial material handling — anywhere safe, precise lifting control is mission-critical.

Crane and industrial lifting application

Power Rate0.4-315KW
Price$69-$2980

Need Help Selecting a Model?

Our engineers will recommend the right configuration for your application.
