Professional Single-Phase 220V Power Solutions | 1.5kW - 5.5kW
<
Professional Single-Phase 220V Power Solutions | 1.5kW – 5.5kW

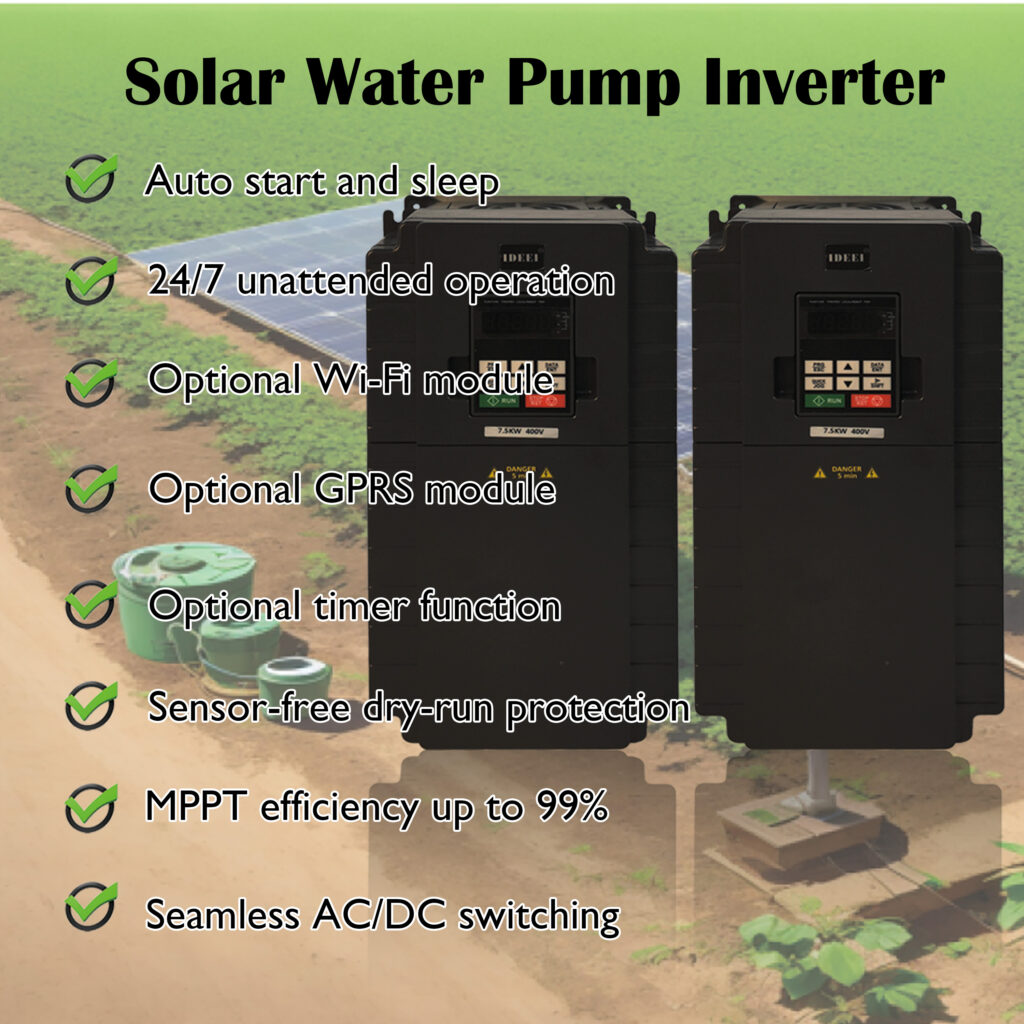

The QB100-PV SS2 Series is a high-efficiency MPPT solar pump inverter specifically engineered for standard single-phase 220V pumps. Unlike conventional VFDs that require complex capacitor removal and rewiring, the SS2 delivers stable power directly to your pump’s existing starting capacitor—eliminating installation headaches while providing 99% MPPT efficiency, intelligent dry-run protection, and seamless AC/DC hybrid switching for reliable residential and small-scale agricultural irrigation.
| Model Number | Power (kW) | Output Current (A) | Max DC Input (V) | Recommended PV (Wp) |
|---|---|---|---|---|
| QB100-1R5G-SS2-PV | 1.5 kW | 10.2 A | 450V | 2000-2400 Wp |
| QB100-2R2G-SS2-PV | 2.2 kW | 14.0 A | 450V | 3000-3500 Wp |
| QB100-PV-SS2-4.0 | 4.0 kW | 25.0 A | 450V | 5000-5500 Wp |
| QB100-PV-SS2-5.5 | 5.5 kW | 32.0 A | 450V | 7000-7500 Wp |
Eliminates diesel fuel costs and battery replacement expenses. Simple installation reduces electrician labor costs.
No pump modification required. Connect solar panels, connect pump, power on—irrigation starts immediately.
Optional Wi-Fi/GPRS modules enable remote monitoring and control via smartphone app from anywhere.
Built with advanced SMT production lines for 10+ year service life in demanding agricultural environments.
No. The QB100-PV SS2 Series is uniquely engineered to work with your single-phase pump’s existing starting capacitor—unlike conventional VFDs that require complex capacitor removal and rewiring. This “capacitor-keep” technology simplifies installation, maintains original pump protection characteristics, and reduces electrical failure points. Simply wire the inverter between your solar array and pump—no motor modification needed.
Yes. The QB100-PV SS2 supports seamless dual-mode AC/DC input. When solar irradiance is insufficient (nighttime, heavy cloud cover, or rainy seasons), the inverter automatically switches to 220V AC input from grid power or a diesel generator. This ensures uninterrupted irrigation schedules while maximizing solar usage when available—effectively eliminating fuel costs during daylight hours.
While the QB100-PV features robust industrial-grade construction with built-in thermal management, we recommend mounting in a ventilated weatherproof enclosure to achieve IP65-grade site protection. This ensures optimal cooling performance and protects against direct rain, dust, and UV exposure—extending service life in harsh agricultural environments. The compact design fits standard electrical boxes and pump house installations.
For the QB100-2R2G-SS2-PV (2.2kW) model, we recommend a 3000-3500 Wp solar array (typically 6-8 x 450W panels wired in series). The inverter’s wide 450V DC input maximum accommodates standard string configurations. Oversizing the array by 20-30% ensures sufficient power during morning/evening operation and cloudy conditions. Our engineers provide free PV sizing calculations based on your specific pump duty cycle and location irradiance data.
Get free system sizing and capacitor-compatibility verification for your existing pump model.
📞 +86 18357241165 (WeChat/WhatsApp) | ✉️ info@vfdinverters.com
| Power Rate | 1.5kw、2.2kw、4kw、5.5kw |
Our engineers will recommend the right configuration for your application.
