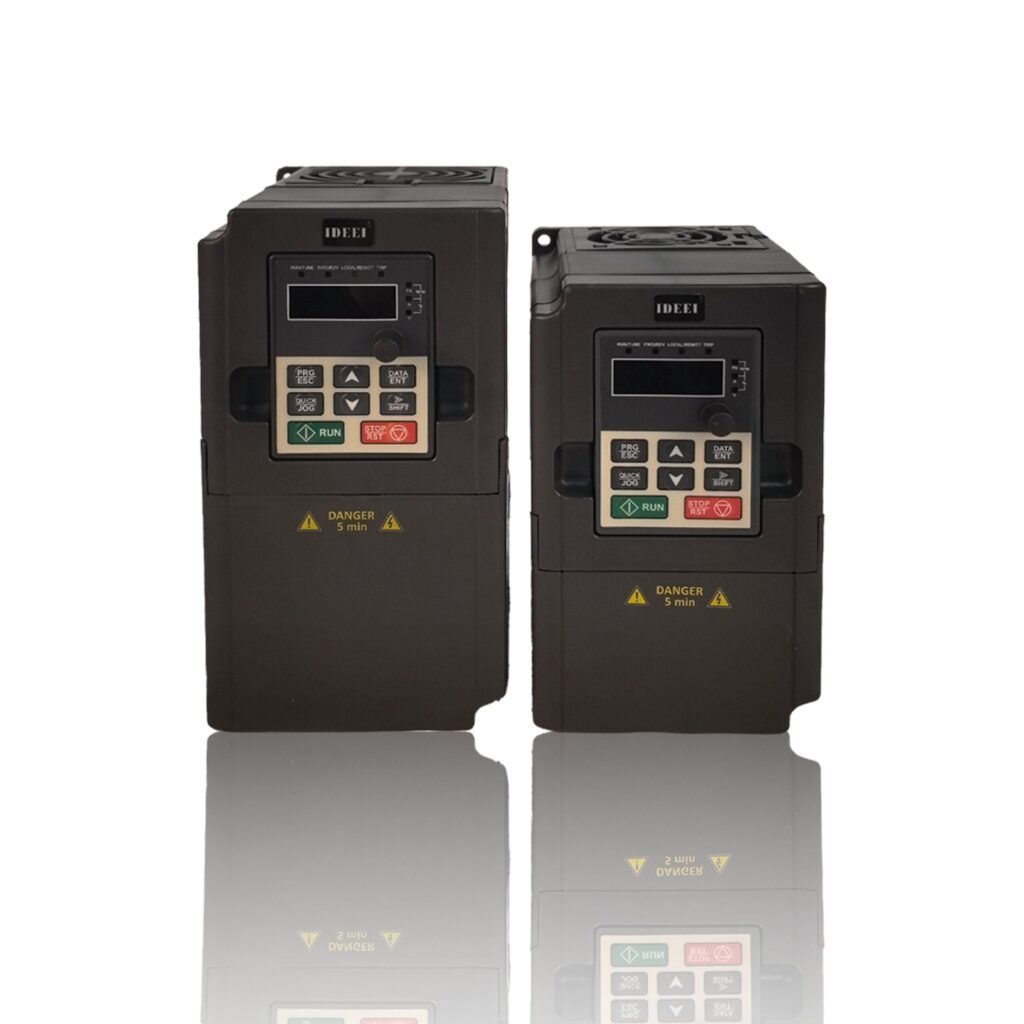

Robust DC-to-AC variable frequency drive designed for off-grid solar and battery systems. Converts 450V DC input to single-phase AC output with integrated MPPT efficiency optimization—eliminating diesel costs for remote irrigation and industrial applications.
DC Solar/Battery Input to Single-Phase AC Output. Engineered for standalone off-grid operation without grid dependency.
| Parameter | Specification | Notes |
|---|---|---|
| Model Number | 100PV-2R2G-S2-DC | 2.2KW Single Phase DC Input Variant |
| DC Input Voltage | 200V – 450V DC | MPPT operating range 250V-400V |
| Rated DC Input | 450V DC Nominal | Compatible with 6-8 panel series strings |
| AC Output Voltage | Single Phase 220-240V AC | ±2% voltage regulation |
| Rated Output Power | 2.2 kW / 2.2 HP | Continuous duty at 40°C ambient |
| Output Current | 10A Rated / 15A Peak | 150% overload for 60 seconds |
| Output Frequency | 0-400 Hz (V/F Control) | 0-3000 Hz optional for high-speed motors |
| MPPT Efficiency | ≥ 99% | Automatic maximum power tracking |
| Conversion Efficiency | ≥ 95% (Peak 98%) | At rated load and nominal input |
| Protection Rating | IP65 | Outdoor installation approved |
| Operating Temperature | -20°C to +60°C | Derating above 40°C |
| Communication | RS485 Modbus RTU | Optional GSM/WiFi remote monitoring |
| Dimensions (W×H×D) | 185mm × 300mm × 160mm | Wall-mount enclosure |
| Weight | 4.5 kg | Aluminum heat sink chassis |
The 100PV 2.2KW inverter supports both direct solar and battery configurations. For daylight-only pumping, connect solar panels directly (250V-450V DC range). For 24/7 operation or consistent flow requirements, add a 48V or 96V battery bank. The MPPT controller automatically optimizes panel output voltage (typically 30-40V per panel, 8-12 panels in series). No battery is required for basic solar pumping applications.
Yes. The 100PV outputs standard single-phase 220-240V AC at 50/60Hz, compatible with conventional single-phase induction motors and pumps up to 2.2KW (3HP). It provides soft-start functionality to reduce inrush current by 60%, protecting pump windings and extending motor life. For pumps over 100m depth, verify starting torque requirements against the inverter’s 150% overload capacity (60 seconds).
The MPPT algorithm tracks maximum power point every 2 seconds, automatically adjusting motor speed to match available solar power. During cloud cover, the inverter reduces output frequency proportionally rather than shutting down—maintaining water flow at reduced rates. If input voltage drops below 200V DC, the inverter enters standby mode and auto-restarts when sufficient power returns. Optional battery backup eliminates flow interruption entirely.
The 100PV series includes a 2-year standard warranty with 5-year extended coverage available. Designed for 15+ year operational lifespan with IP65-rated aluminum enclosure, conformal-coated PCBs, and passive cooling (no fan failures). MTBF exceeds 50,000 hours. Technical support includes remote diagnostics via RS485 and field service coordination for critical agricultural installations.
